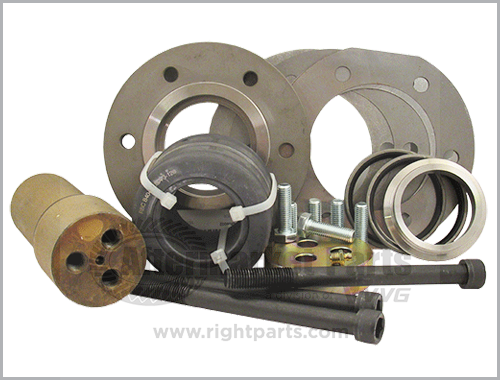

28606000K, T184599KIT, AT190834
TOP HINGE FIELD REPAIR KIT
Kit includes:
Quantity of 1: T236807 Shim, JD7759 Grease Fitting, T184604 Plate, T184601 Cover, AT61251 Bushing,
T184599 Pin, T236808 Shim, T184602 Locking Collar
Quantity of 2: T236801 Shim, T184853 Seal
Quantity of 3: 19M9000 Capscrew
Quantity of 6: 19M7791 Capscrew
Machine Models: 540G-II thru 748G-III, Serial Numbers 576603 and up. All H Series machines. Also, E, G, & G-II Series machines with updated frame ears.

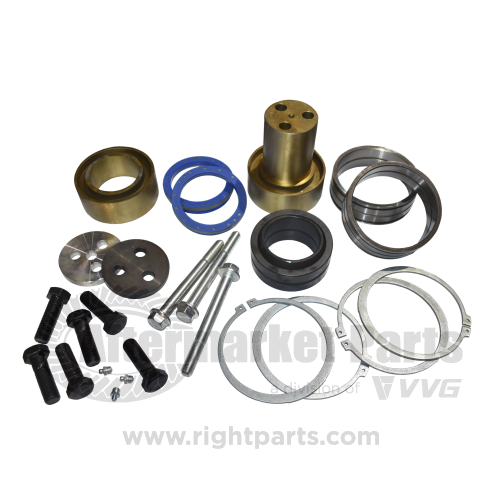

28606001K, T184606KIT
BOTTOM PIN KIT
Kit includes:
Quantity of 1: T184608 Washer, T184607 Bushing, T184606 Pin, AT175578 Ball Bushing
Quantity of 2: 184605 Bushing, AT178191 Seal
Quantity of 3: 19M7960 Screw, JD7759 Grease Fitting
Quantity of 4: 40M7293 Snapring
Quantity of 6: 19M8638 Capscrew
Machine Models: All updated E, G, and GII. GIII thru Serial Number 604613. Timberjack Skidder Models: 360, 460, 560 'D', 360DC, 360DG Serial Numbers 604614 thru 630435.

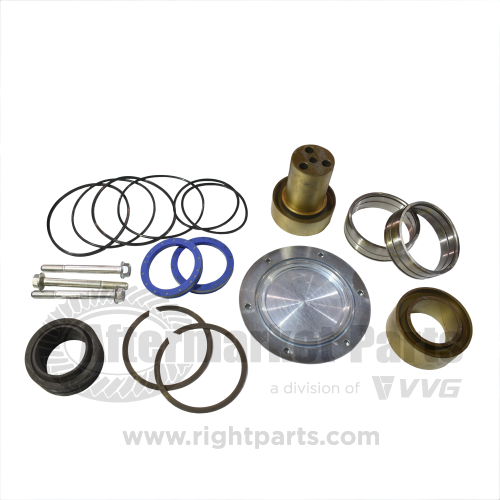

28606002K, T224229KIT
BOTTOM PIN KIT
Kit includes:
Quantity of 1: T224229 Pin, T224238 Bushing, AT175578 Ball Bushing
Quantity of 2: AT178191 Seal, F811075 Snapring, R64074 O-ring, R89632 Ring, T237675 Seal, T224248 Bottom Hinge Pin Bushing
Quantity of 3: 19M7960 Screw
Machine Models: 540GIII/548GIII Serial Numbers C630436 thru C666892, 540GIII/548GIII Serial Numbers 640614 thru 630435, 640GIII/648GIII Serial Numbers 604614 to end of Series 748GIII Serial Numbers 576603 thru 604613, 748GIII Serial Numbers 604614 to end of Series, All H Models.

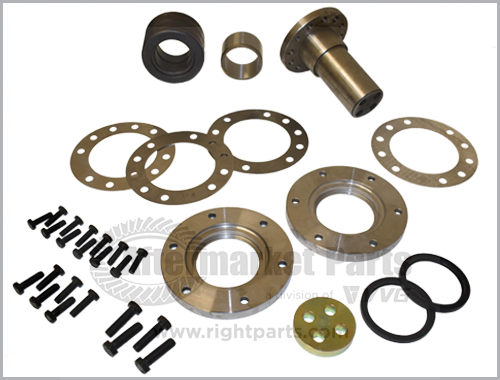

28629021K, F291300KIT
TOP PIN KIT for Newest 60 Series Timberjack Skidders
Kit includes pin, bushings, retainers, spacers, seals and hardware for replacement.

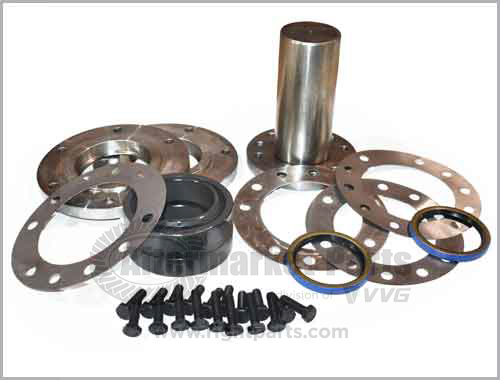

28629022K, F288160KIT
BOTTOM PIN KIT for Newest 60 Series Timberjack Skidders
Kit includes pin, bushings, retainers, spacers, seals and hardware for replacement.

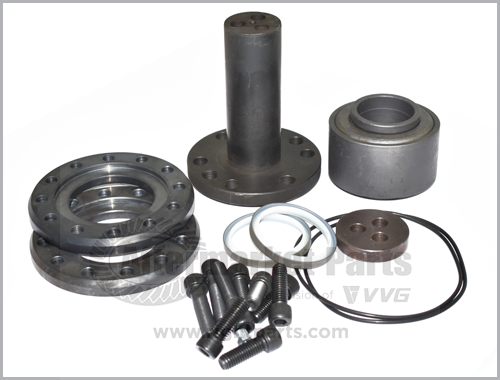

41003000K, 1923916KITT, R1923916KITT
TOP HINGE / CRADLE PIN KIT for Clark Ranger Skidders
Kit includes pin, bushings, retainers, spacers, seals and hardware for replacement.

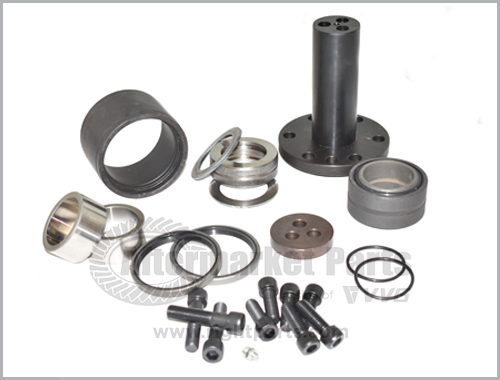

41003001K, 1923916KITB, R1923916KITB
SUSPENSION PIN KIT for Clark Ranger Skidders
Kit includes pin, bushings, retainers, spacers, seals and hardware for replacement.
48903000K, KIT28300
DISC KIT for Clark Transmission
48903002K, KIT28400
POWERSHIFT TRANSMISSION DRUM DISC KIT for Clark Transmission

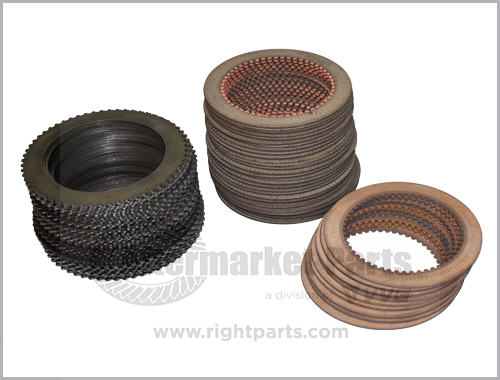

48903003K, KIT32400
DISC KIT for Clark Transmission

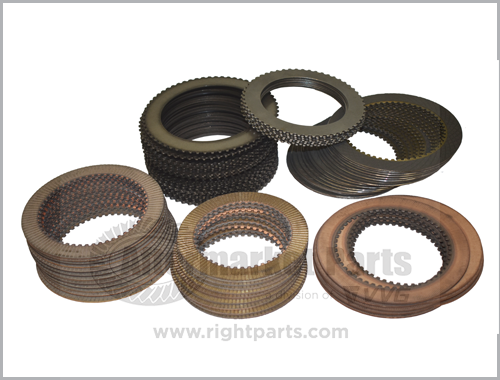

48903004K, KIT32600
POWERSHIFT TRANSMISSION DRUM DISC KIT for Clark Transmission

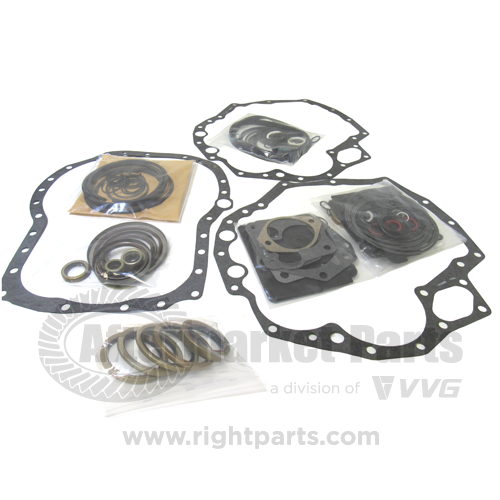

28403010K, KIT32001, 32001

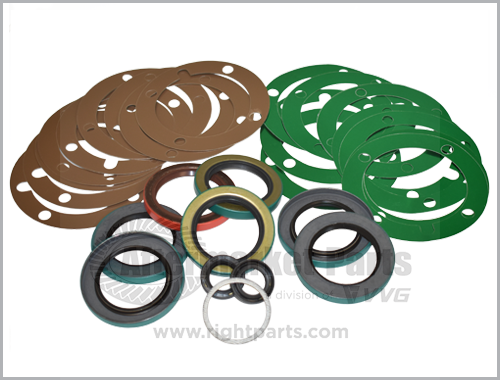

GASKET AND SEAL KIT
for Clark Transmissions, 32000 Series

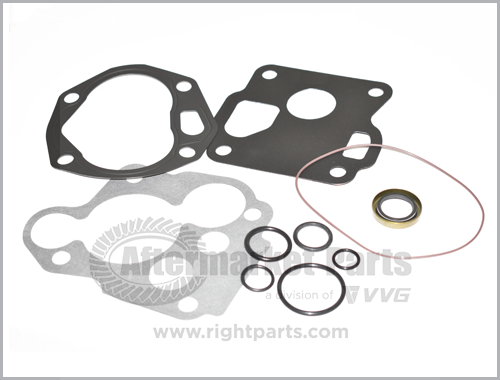

28403011K
GASKET AND SEAL KIT
for Clark Transmissions, 32000 and 33000 Series
Replacement Kit for the Transmission Charge Pump.

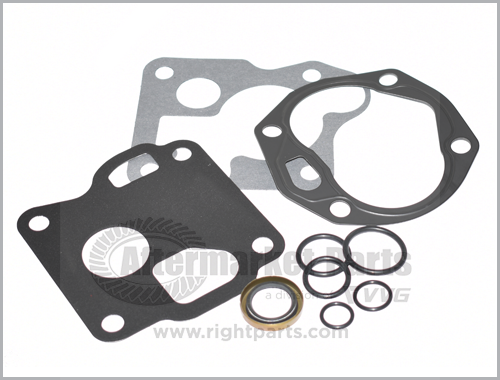

28403007K
GASKET AND SEAL KIT
for Clark Transmissions, 28000 Series
Replacement Kit for the Transmission Charge Pump.

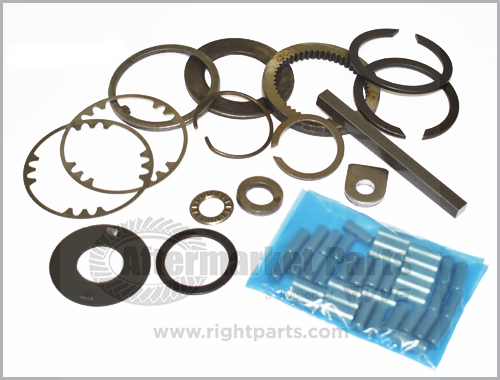

28922000K, SP310-50
SMALL PARTS KIT for New Process 542 Transmissions
You can also use this kit for a New Process 442 overhaul but you will have a few extra parts.
Kit includes washers, snaprings, retaining ring, shims, keyway, and needle bearings.

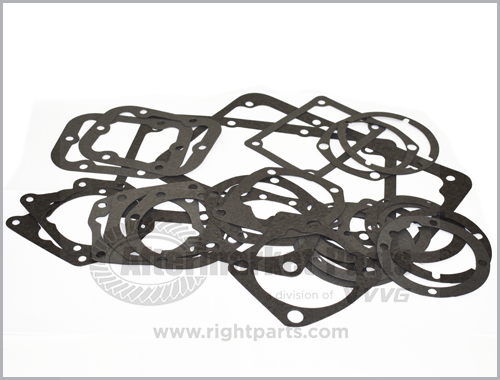

28322000K, WT277-55 WAR, 69040718
TRANSMISSION GASKET KIT for New Process 441, 442, 541, 542
Kit includes all gaskets for the models listed.
28422000 Reverse Box Gasket is sold separately.

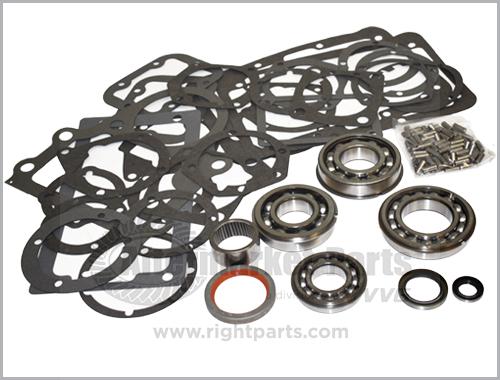

28201000K
BEARING, SEAL AND GASKET KIT for New Process 441R Transmissions
Kit includes all the bearings, seals and gaskets needed to overhaul a New Process 441 Transmission.
We have even included the Reverse Box!!

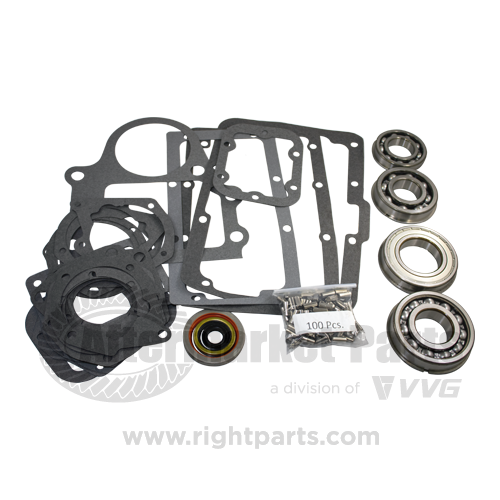

28201002K
BEARING, SEAL AND GASKET KIT for New Process 442 Transmissions
Kit includes all the bearings, seals and gaskets needed to overhaul a New Process 442 Transmission.
29125000K, 111510K, 400420K
DRUM BRAKE SHOE AND SMALL PARTS KIT for New Process Transmission Cases
Kit includes 2 brake shoes, along with all the retainers, locks and springs used in a Transmission Case repair.
28201001K
BEARING, SEAL AND GASKET KIT for New Process Transfer Cases
Kit includes all bearings, seals and gaskets for the repair of a New Process T-case.

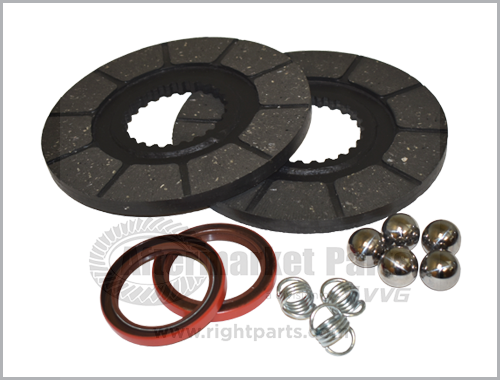

29129002K, 410619KS, 247771KS, 824777100KIT, 841061900KIT
SINGLE DISC BRAKE REPAIR KIT for Timberjack
Kit includes discs, balls, springs, and dust seals.

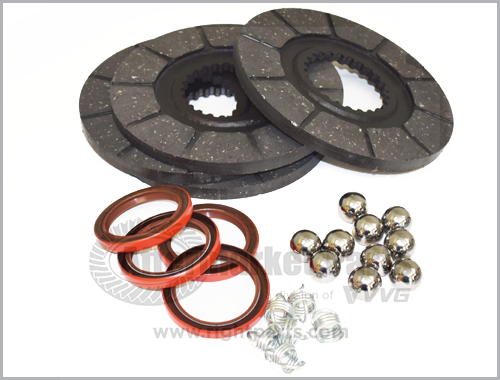

29129003K, 410619KD, 247771KD, 824777100KD, 841061900KD
DUAL DISC BRAKE REPAIR KIT for Timberjack
Kit includes discs, balls, springs, and dust seals.

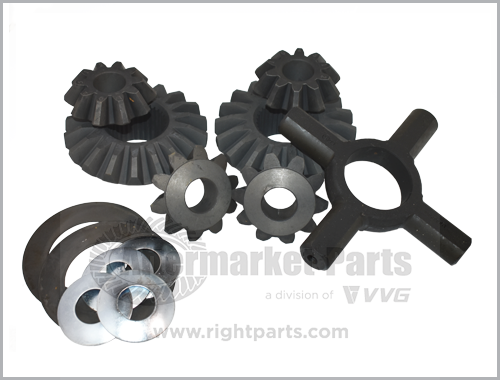

DIFFERENTIAL SPIDER KIT for Timberjack 240, 380, 450 and 480T
WR7 Spider Kit for a Locking Differential Axle repair.
28607009K
DUAL DISC BRAKE REPAIR KIT for WR3 Axles for Timberjack 225, 230, 230-f (forwarder), and 240
